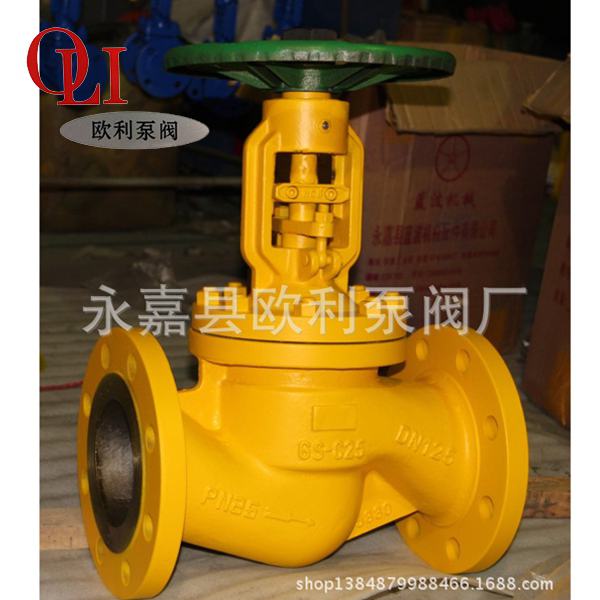

Ammonia with the bellows globe valve

Dateline:2014-11-30    Hits:

Product performance specification for Products Perfomance specification

Pressure rating at room temperature test pressure

Housing sealing bellows seal low pressure seal

Nominal pressure

(MPa) 1.6 2.4 1.76 1.76 0.6

2.5 3.75 2.75 2.75 0.6

4 6 4.4 4.4 0.6

Application of the temperature of -29~425 DEG C

Applicable medium ammonia, liquid ammonia, water steam. Heat oil. Oil.

Main dimensions Main size of outside

The model BQJ41H (Y) WJ41H (F)

Pressure level PN16.25.40

Diameter 1520253240506580 100125150200250300 350400

L 130150160180200230 290310350400480600 7308509801100

H 205210220235235240 270295350380430670 720630680780

W 130130130130150150 180180200200400450 450500500550

Weight (Kg) 4.5568 10.5 13.52125 37.56078178270450 570750

Note: 1 the valve aperture more than more than DN200 Series 7, used in highpressure conditions should be used when the balance valve. 2. When the application and water. Oil and gas system temperature less than 250 is suggested to use soft seat (Te Fulong) to ensure no leakage.

Materials of main parts of Main parts materials

Name of material

1 valve forged steel cast stainless steel

2 valve ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316 F321 F304LF316L

3 ASTM A182-Gr.F6a ASTM A182-F22 pin ASTM A182-F304 F316 F321 F304LF316L

4 double bellows bellows assembly (made in Shenyang) 1CrNi9Ti.304. 316

5 stem ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316 F321 F304LF316L

A valve cover 6 GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301

7 packing flexible graphite

8 packing gland GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301

The 9 positioning pieces 25.45.304.316

10 stem nut ZQA19-4 copper alloy

11 hand GS-C25 WCB.QT40-18

12 stud ASTM A193-B7.A193-B8.A193-B8M

13 ASTM A194-2H. A194-8. A194-8M six hexagon nut

14 gaskets and flexible graphite and stainless steel
